Continental M17

UPC#: 732212422041 Categories , Tags , , ,

$24,999.00

Please see Dealer for pricing

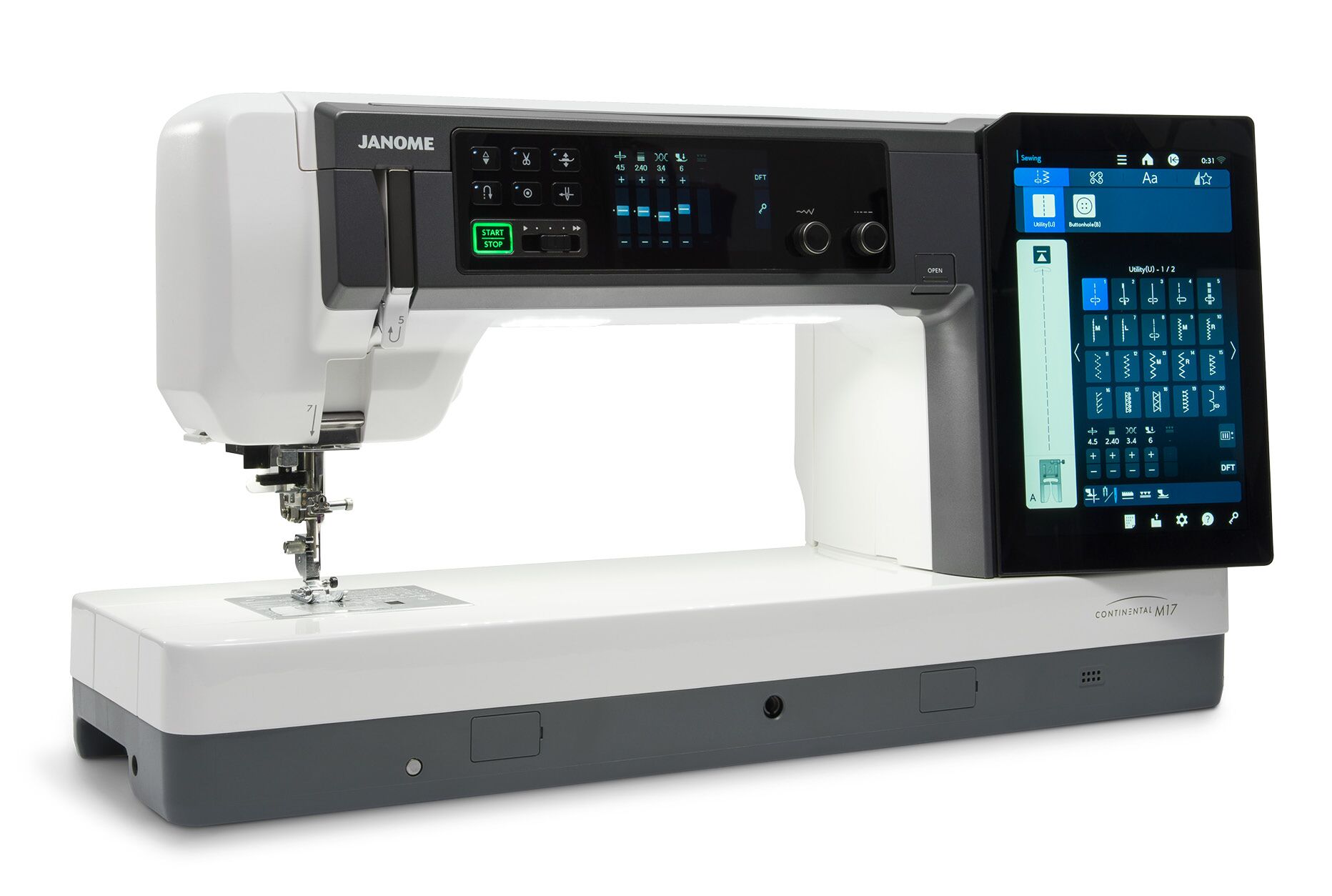

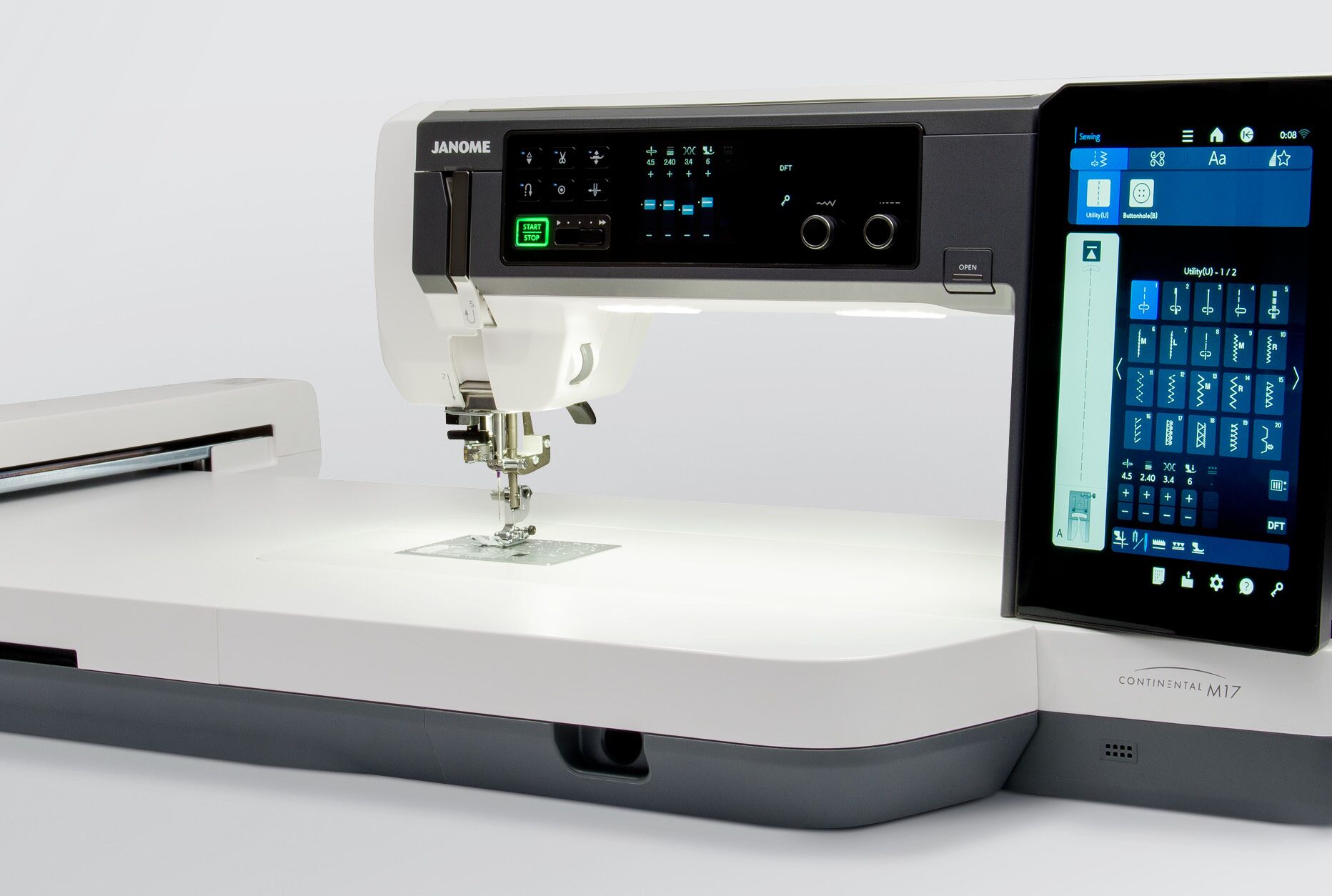

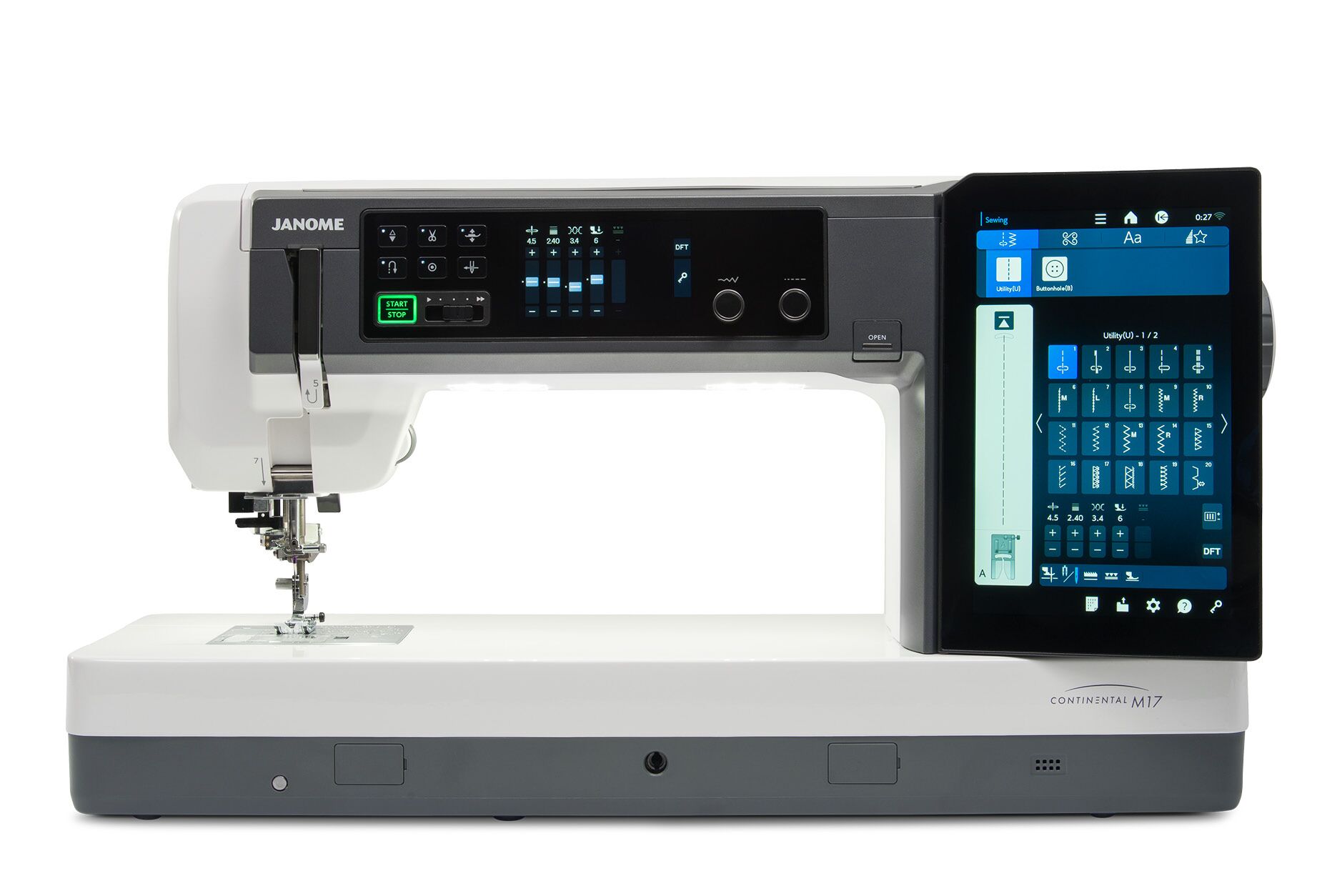

Continental M17
Continental M17 - Image 2
Continental M17 - Image 3
Continental M17 - Image 4
Continental M17 - Image 5
Continental M17 - Image 6
Continental M17 - Image 7
Continental M17 - Image 8
Continental M17 - Image 9
Continental M17 - Image 10
Continental M17 - Image 11

Janome Resources

Continental M17 Product Manual

Download ManualDownload Manual (fr)

Continental M17 Feature Sheet

Download Feature SheetDownload Feature Sheet(fr)

Continental M17

UPC#: 732212422041 Categories , Tags , , ,

$24,999.00

Please see Dealer for pricing

Find a Janome Dealer

Own this machine already?

Register your warranty

There are milestone moments in history that have redefined a sewists creative landscape. The next generation of sewing, quilting and embroidery machine from Janome will revolutionize how you define sewing potential. Meet the Continental M17, a ground breaking combination machine with industry leading features: largest sewing area in the industry and the largest embroidery space, a powerful motor that provides the industry’s fastest stitching speeds, dual colour touch screens, over 1,200 built-in embroidery designs and the largest embroidery hoop in the industry (11 x 18.1” / 280 x 460 mm), 5 wireless apps (AcuAssist on-screen help, Embroidery-Link, AcuSetter, AcuSketch, ScreenSaver), Artistic Digitizer JR, A.S.R. (Accurate Stitch Regulator) for free-motion and ruler quilting, shadow free sewing area, needle bar thumb wheel for precise control, a LED embroidery spotlight positioning marker and so much more.



An Award-Winning Machine:
iF Design Award recognizes products for design excellence and exceptional quality.
Learn more about the CM17’s iF Design Award

Documents:

Other References:

Award-Winning Machine:


 iF Design Award recognizes products for design excellence and exceptional quality.

Click Here for more information about iF and the Continental M17’s design award!

Janome Resources

Continental M17 Product Manual

Download ManualDownload Manual (fr)

Continental M17 Feature Sheet

Download Feature SheetDownload Feature Sheet(fr)
Key Features| Recommended Accessories| Standard Accessories| Optional Accessories| Specifications| Reviews
Key Features Recommended Accessories Standard Accessories Optional Accessories Specifications Reviews

Key Features

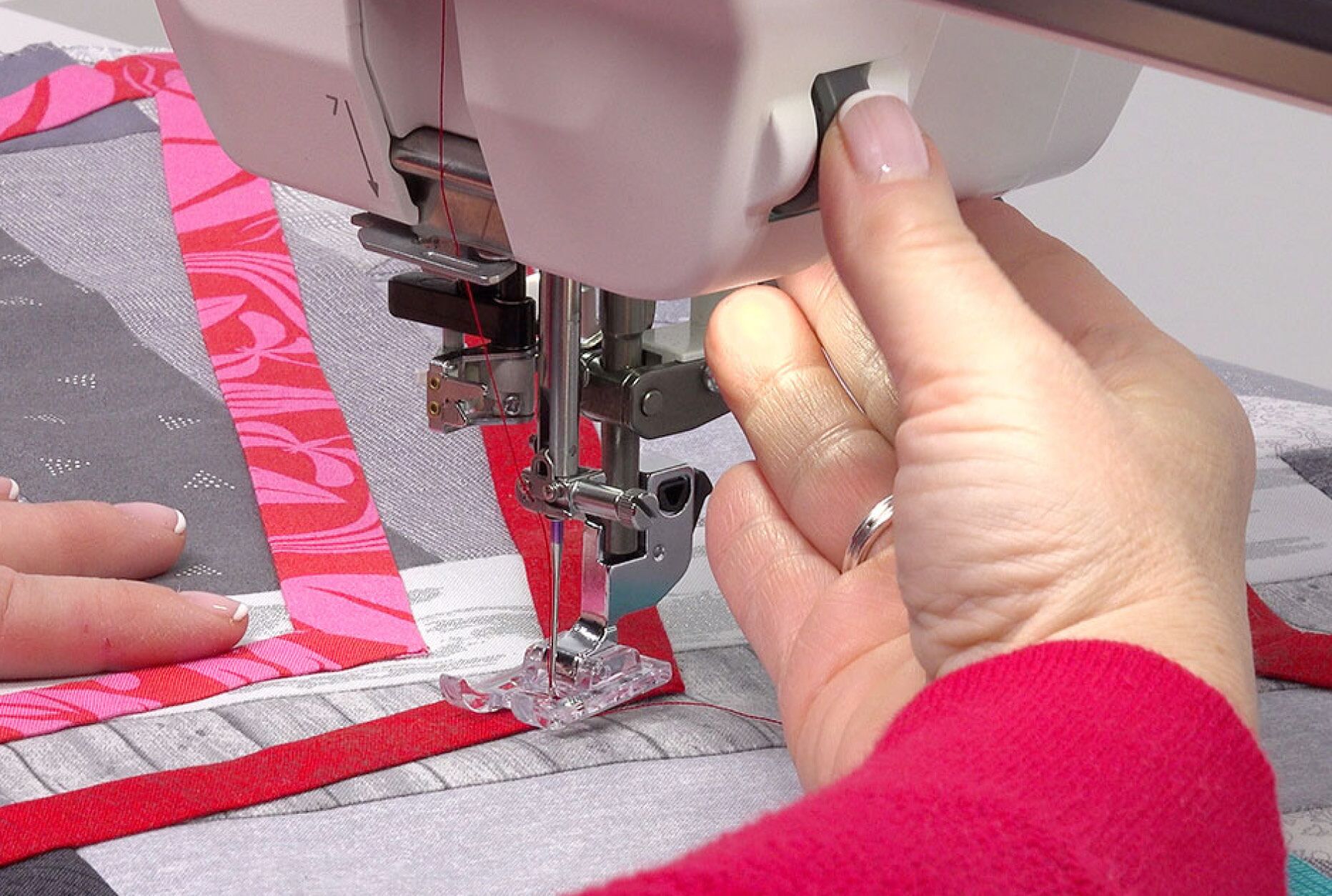

Thumb wheel beside the needle bar precisely raises and lowers the needle

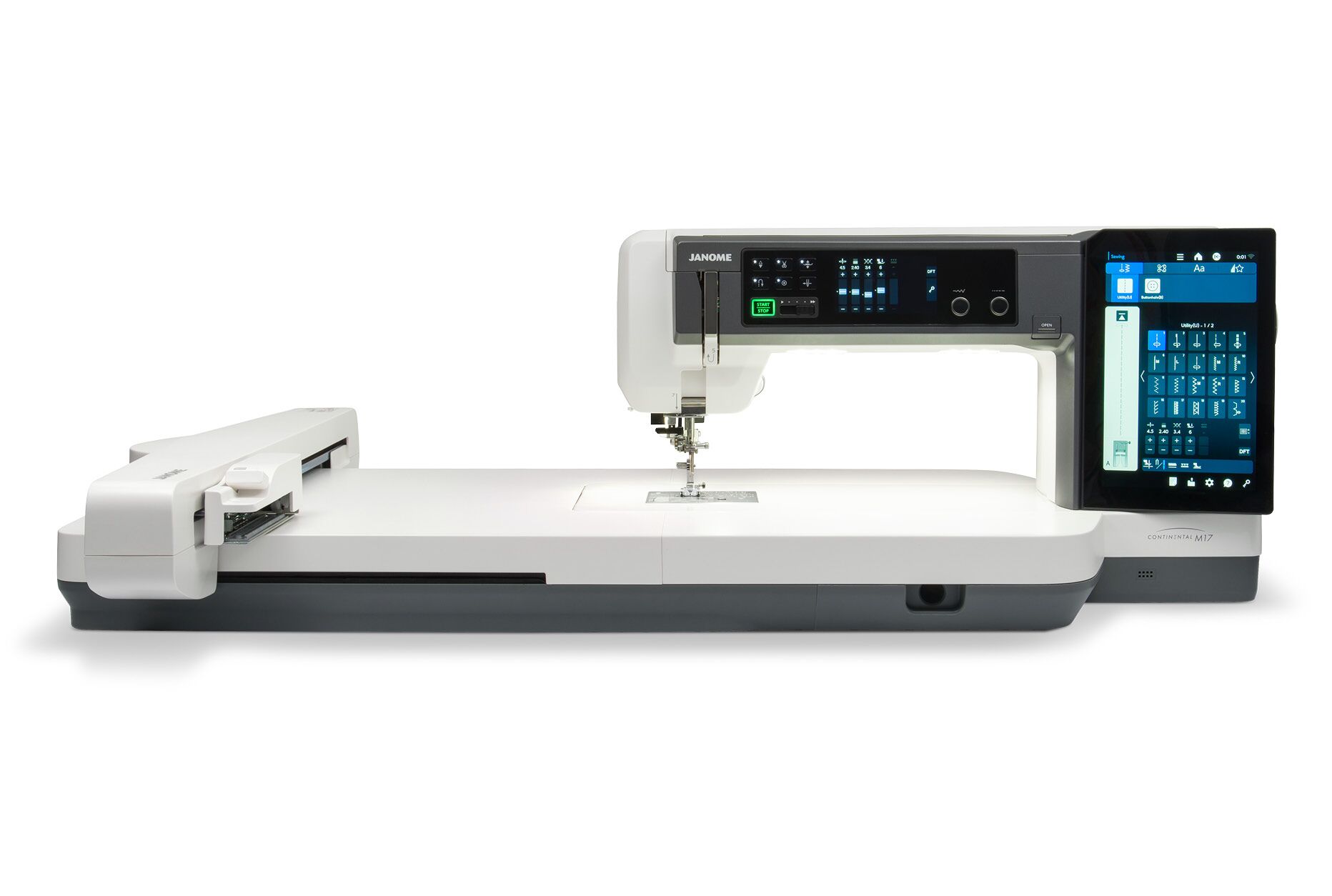

Gantry style embroidery arm with 5 hoops. The RE46d carbon fibre reinforced hoop provides 11 x 18.1” of embroidery space with an easy-to-hoop lever system
Convenient buttons, right where you need them, including an automatic built-in needle threader

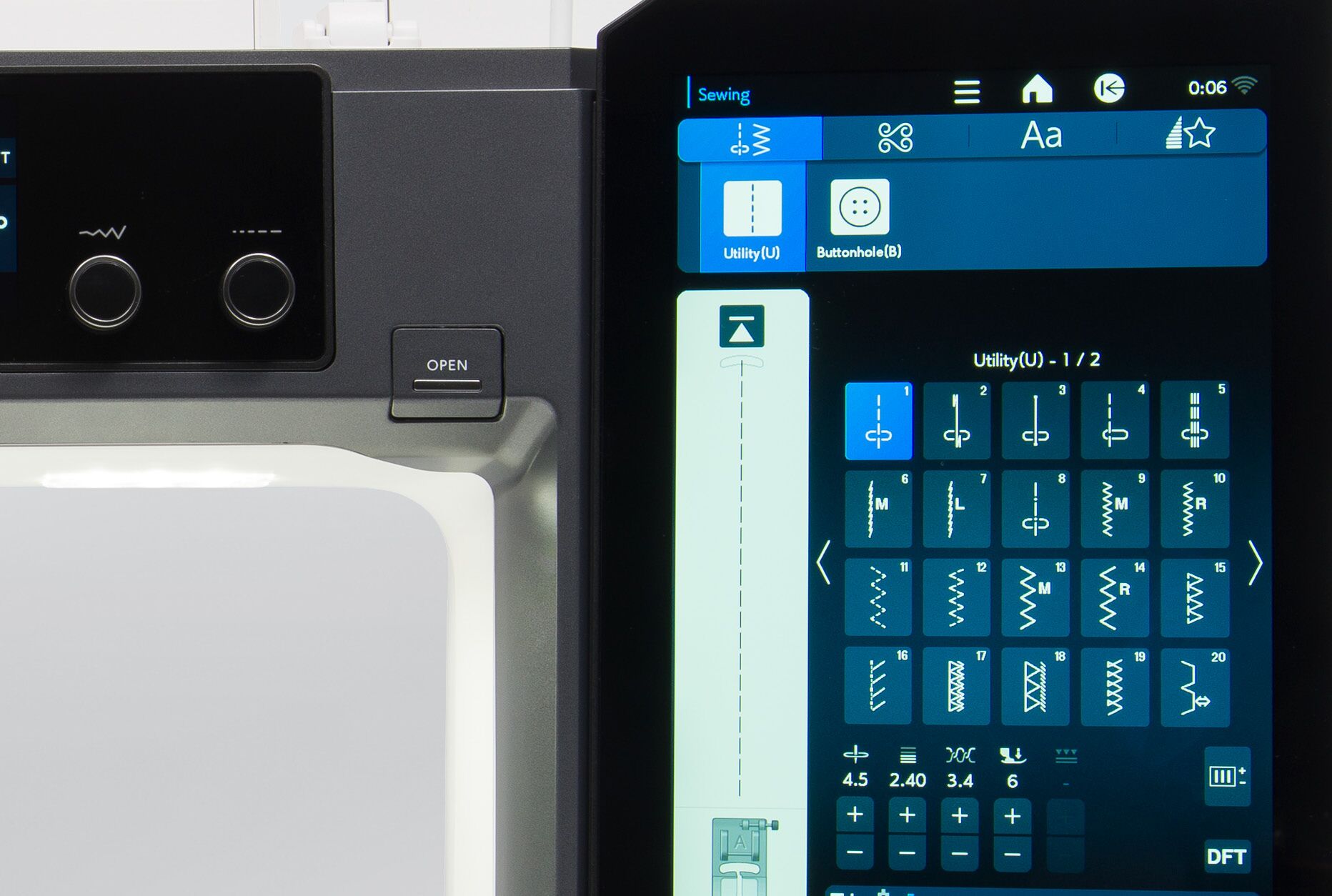

An industry first - full colour dual LCD touchscreens
850 Built-in stitches, including 13 different styles of buttonholes and with Stitch Composer your stitch count is infinite.

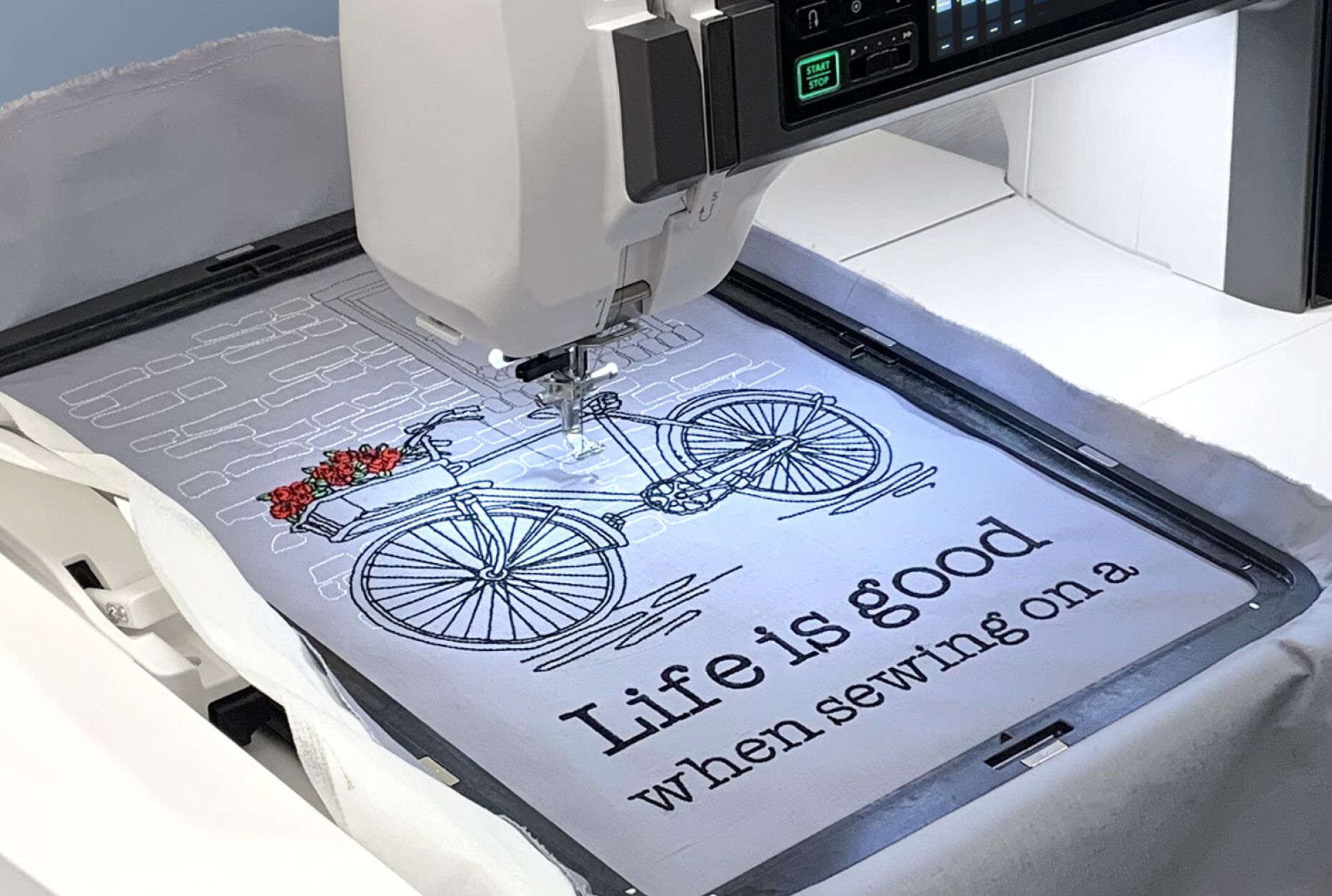

1,230 Built-in embroidery design, 10 Fonts, 2 and 3 Letter monogramming, LED Embroidery spotlight positioning marker
  • 850 Built-in stitches
  • 13 One-step buttonholes
  • Sewing speed up to 1300 SPM
  • 7-Piece feed dog
  • 91 Needle positions
  • Variable zig zag for thread painting
  • Maximum stitch width: 9 mm
  • Maximum stitch length: 5 mm
  • Precise needle position via thumb wheel
  • A.S.R. (Accurate Stitch Regulator)

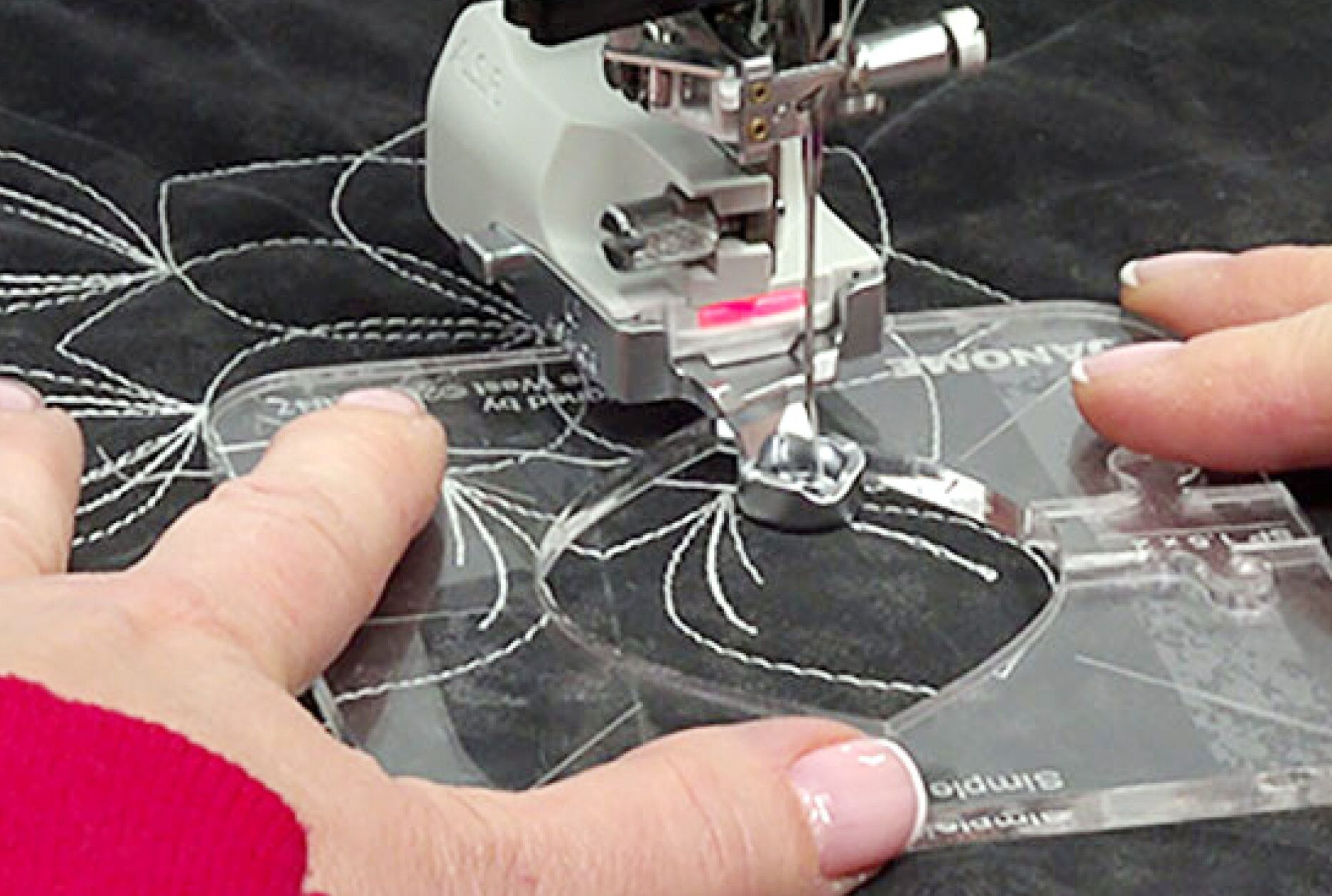

  • Four attachments for ruler work
  • High sensitivity sensor adjust to users skill
  • AcuFeed Flex Layered Fabric Feeding System

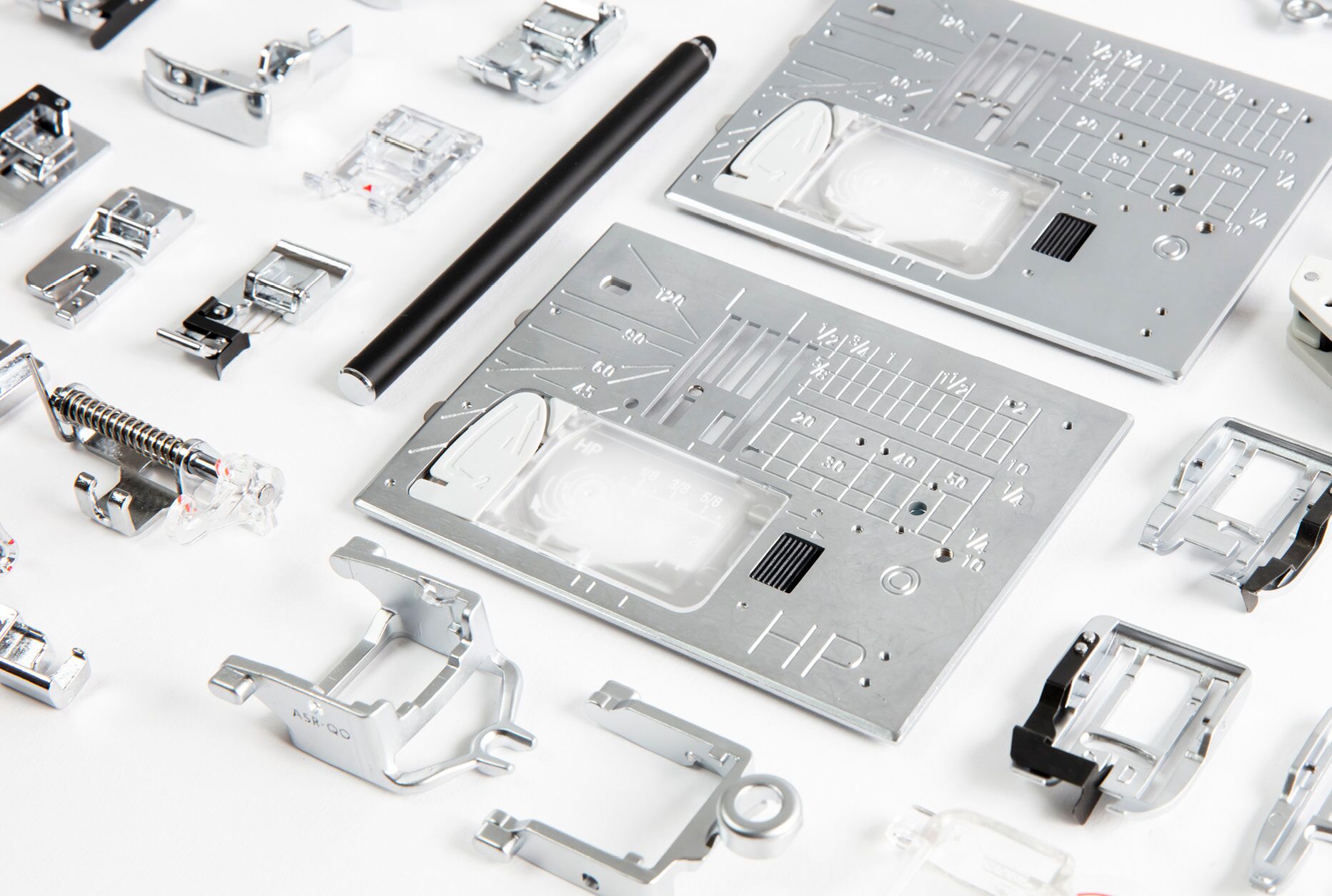

  • HP foot and needle plate system
  • Drop feed
  • Dual full colour LCD touchscreens
  • Full intensity shadow free lighting system
  • 9 Bright LEDs in 4 locations
  • AcuView Magnifier (20x, 40x, 60x)
  • Artistic Digitizer JR software included
  • Wireless LAN Certified apps
  • AcuAssist – On-screen help with in-app tutorials and instruction
  • Embroidery-Link – Wireless embroidery editing and monitoring
  • AcuSetter – Clothsetter application for proper embroidery placement
  • AcuSketch – Turn free-hand drawing into digitized embroidery designs
  • ScreenSaver – Upload your own images to the machine screensavers
  • Automatic one-step needle plate lift with soft close
  • Stitch Composer, Quilt Block Advisor, Screen Saver Tool
  • 13.5 x 5.5” of seamless workspace to the right of the needle
  • Built-in storage space: Embroidery table, top and back
  • Automatic one-step needle
  • Self-opening top cover
  • Pop-up spool pins
  • Clock Display
  • Automatic thread tension
  • Automatic needle threader
  • Memorized needle up/down
  • Automatic presser foot lift
  • Start/stop button
  • Speed control slider
  • Locking stitch button
  • Easy reverse button
  • Twin needle guard
  • Memory capability up to 64 MB
  • Adjustable knee lift
  • Optical bobbin sensor
  • Extra high presser foot lift
  • Foot pressure adjustment
  • Foot height adjustment
  • Top loading full rotary hook bobbi
  • Online instructional videos
  • 1,230 Built-in embroidery designs
  • 10 Fonts with European character
  • 2 and 3 Letter monogramming
  • Embroidery sewing speeds up to 1,200 spm
  • LED Embroidery spotlight positioning marker
  • Maximum embroidery size 11 x 18.1”
  • Adjustable hoop positioning
  • Quick-tightening hoop levers
  • Design transfer: Wireless, USB and Direct
  • Embroidery format supported include: JEF, .JEF+ and .JPX
  • Editing functions: Resize, Rotate, Flip, Zoom, Duplicate, Combine, Sewing Order, Single Colour Sewing & Grouping, Corner Layout
  • Gantry style embroidery arm with 5 hoops includes our RE46d carbon fibre reinforced hoop for maximum strength and rigidity
  • RE46d 11 x 18.1” (280 x 460 mm)
  • SQ28d 11x 11” (280 x 280 mm)
  • RE20d 5.5 x 7.9” (140 x 200 mm)
  • SQ10d 3.9 x 3.9” (100 x 100 mm)
  • ASQ27d 10.6 x 10.6” (270 x 270 mm)
  • Adjustable hoop positioning
  • Programmable jump thread trimming
  • Automatic enabling cutwork
  • Auto return post thread break
  • Auto return post thread break
  • Thread brand selection: Janome, Madeira, Hilos Iris, Guttermann and more

Recommended Accessories

Here are some accessories that will unlock even more features of your machine! Add these to your toolbox to expand your creative options and produce even more impressive results.

Piping Foot (Narrow)
Piping Foot (Narrow)
Lap Seam Foot
Lap Seam Foot
Bi Level Foot
Bi Level Foot
CM17 5 Thread Spool Stand
CM17 5 Thread Spool Stand
Exclusive CM17 A.S.R. Accessory Case (A.S.R. not included)
Exclusive CM17 A.S.R. Accessory Case (A.S.R. not included)
Standard Accessories
Optional Accessories
Machine Specifications
  • Number Of Designs: 1230
  • Fonts For Monogramming: 10
  • Maximum Embroidery Size: RE46d Hoop 11.3"x18.2"
  • Design Transfer Options: Wireless
  • Embroidery Sewing Speeds: 1200
  • Embroidery Format: JEF, .JEF+, .JPX
  • On-screen Editing Functions: Yes Resizing, Combine, duplication, Rotate, Vertical/Horizontal Flip, Arcing, Groupiing, User Color Choice
  • Programmable Jump Thread Trimming: Yes
  • Adjustable Speed While Embroidering: Yes
  • Flexible Stitch Travelings: units of 1, 10, 100 and 500
  • Auto Return Post Thread Break: Yes
  • Adjustable Hoop Positioning: Yes
  • Thread Cutter: Yes
  • Screen Type: Two Advanced LED Touchscreens
  • Thread Brand Selection: Janome (Polyester & Acrylic), Gutermann, Robinson-Anton (Polyester & Arcylic), Mettler, Iris UltraBrite, Madiera, Jenny Haskins
  • Available Hoops: RE46d 11 x18.1” (280x460 mm), SQ28d 11 x 11” (280x280 mm), RE20d 5.5 x 7.9” (140 x2 00 mm), SQ10d 3.9 x 3.9”(100 x 100 mm) ASQ27d 10.6 x 10.6” (270x270 mm)
  • Hook Type: Top Loading Full Rotary Hook Bobbin
  • Number Of Stitches: 850
  • Number Of Buttonholes: 13 One-Step Buttonholes
  • Thread Tension Control: Automatic
  • Needle Threader: Computerized
  • Presser Foot: Snap-On
  • Needle Updown: Memorized
  • Feed System: AcuFeed Flex
  • Drop Feed: Yes
  • Needle Position: 91
  • Startstop Button: Yes
  • Speed Control Slider: Yes
  • Locking Stitch Button: Yes
  • Automatic Thread Cutter: Yes
  • Easy Reverse Button: Yes
  • Memory Function: Yes
  • Number Of Stitch Combinations: Up to 100 stitches
  • Last Stitch Recall Capability: Yes
  • Knee Lift: Yes
  • Machine Size Footprint: W43.8"x H13.9"x D28.0"
  • Machine Weight: 44.25 lbs (66.8 including embroidery unit)
  • Workspace: W 13.5" x H 5.5"
  • Bobbin Winding: Independent Motor
  • Extra High Presser Foot Lift: Yes
  • Stitch Selection Type: Touchscreen
  • Foot Pressure Adjustment: Yes
  • Maximum Stitch Width: 9mm
  • Maximum Stitch Length: 5mm
  • Cover: Semi-Hard Cover
  • Extra Large Footprint: Yes
  • Touch Screen: Yes
